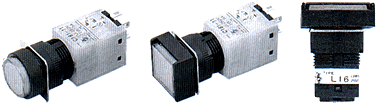

• 16mm series pushbutton devices are provided with seals to guard against the entrance of dust, non-corrosive liquids and oils.Push buttons, illuminated devices and selector switches have a degree of protection of IP65, while push lock-twist release devices have IP4X
• SNAP-IN attachment of the operator and contact unit for ease of installation and maintenance.
• Quick connect solderable stab terminals: Terminals are provided at the rear of the contact unit and it simplifies wiring and /or soldering jobs.
• Moulded-in terminals and epoxy sealing treatment ensures long years of flux free operation.
• Lamp flexibility: Pilot lights and illuminated pushbutton devices come, as standard, with either incandescent lamps or high brilliant LED lamps consisting of 6 LED chips for even full face illumination. Resistors/protective diodes are incorporated in our lamps, as an external resistor is not required. In addition to the 6-chip LED lamp, 4-chip lamps are available as less expensive optionals.
• Snappy operation by unique spring return switching mechanism ensures contact reliability and stability all the time
• Contact units are available in single pole and two pole. Switch contacts are solid silver. Gold plated contacts are available as option. This flexibility makes the pushbutton devices ideal for wide range of load conditions from very weak to high load

• Push-button Switches
• Knob Selector Switches
• Key Selector Switches
• Push Lock Twist Release
• Illuminated Pushbutton Switches
• Pilot Lights
• LED lamps
• Incandescent Lamps

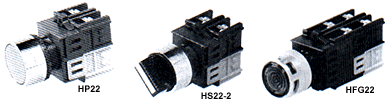

Top, quality, high productivity, quick connecting contact blocks.

• Push-button Switches
• Knob Selector Switches
• Key Selector Switches
• Push Lock Twist Release
• Illuminated Pushbutton Switches
• Pilot Lights
• LED lamps
• Incandescent Lamps

• Degree of Protection IP65 (oil tight, water tight, dust proof) to meet wide and various applications.
• SNAP-IN attachment of the operation and main body for ease of installation and maintence.
• SLIDE WIPER action ensures permanently clean contact points.
• No screws or special tools required for stacking contact blocks-facilitates changing and/ or adding contact blocks.
• The contact units come in two type: contact A (normally open) and contact B (normally closed). You can combine the exact number of contact units needed, thus saving space and cost. The contacts A and B can be easily identified by its body- contact A in black and contact B in red.
• Variety of lamps: In addition to the standard incandescent lamps for illuminated devices, there are LED lamps available. When ordering, add the prefix "MD" in front of the basic model codings for incandescent lamp models.
